Technical data
Type: Electronic Keypad Lock
Material: Zinc alloy
Finished: Satin chrome or powder coating
Power supply: Standard CR2450
Function length (X): 20.5mm, 30.5mm
Version: Horizontal
Color: Black, Silver, White
![Electronic Latchbolt Keypad Lock MK731 Electronic Latchbolt Keypad Lock MK731](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/77134484e8a47b7897b6761e43404cef/color-285x93.webp)
![Electronic Latchbolt Keypad Lock MK731 Electronic Latchbolt Keypad Lock MK731](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/bab0415e7895c6840f0cb40672ab190a/mk731-H-electronic-latchbolt-keypad-lock-401x455.webp)
![Electronic Latchbolt Keypad Lock MK731 Electronic Latchbolt Keypad Lock MK731](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/6ea2f105d68840d3994d955c5afeaae3/MK731-H-electronic-latchbolts-keypad-lock-393x176.webp)
Features
● Keypad operation: More durable and easier operation.
● All-metal housing: Durable with 10mm lock housing.
● Horizontal version: Suitable for left and right door use.
● Three-level management: Master, Sub-master, User.
● Public and Private mode: The same lock can switch between public mode and private mode freely.
● Master key: Emergency unlocking.
● IP65 rating: High-level resistance to water, humidity and dust.
● Low battery warning: Low battery indicator.
● Anti-microbial: Optional with anti-microbial (Escherichia coil and Staphylococcus aureus) up to 97%.
● Door thickness available: Various door thicknesses
from 0.6mm to 20mm (metal, wood, glass, plastic...).

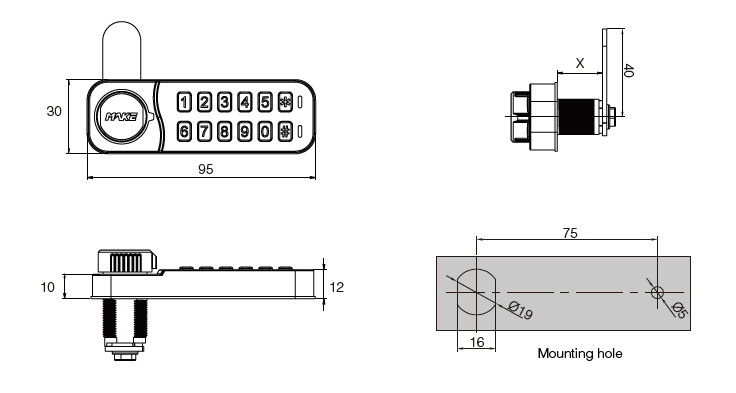

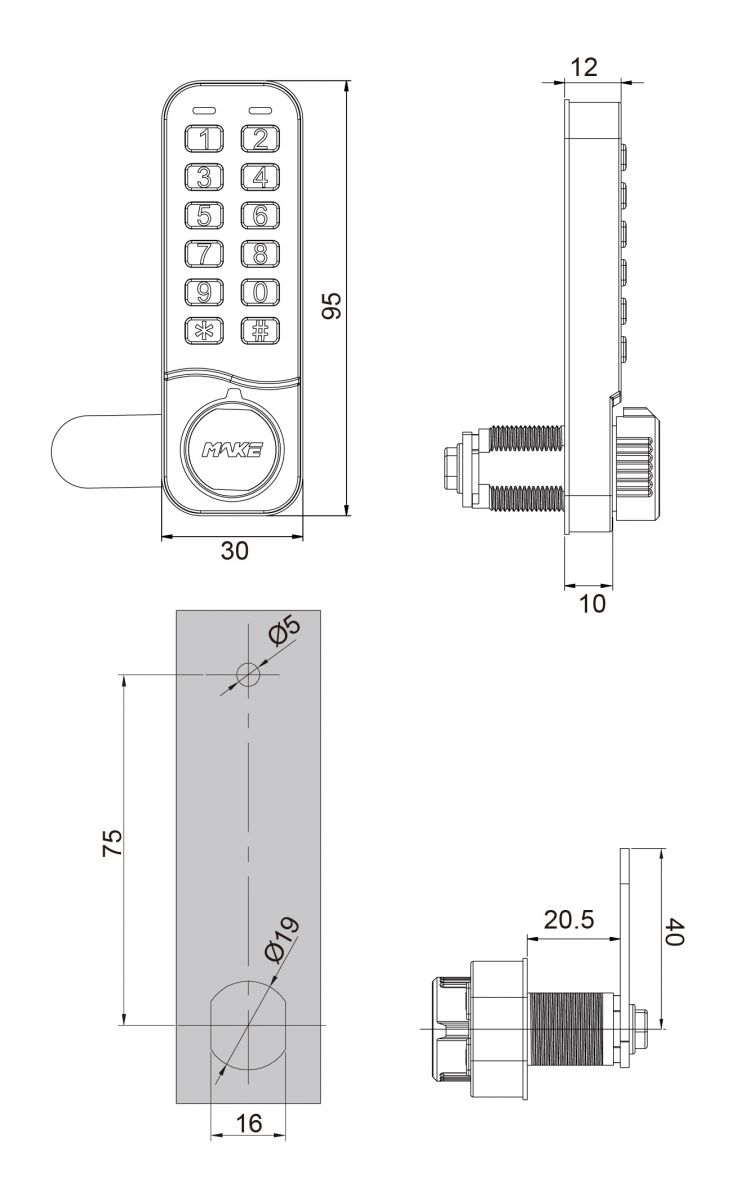

Mounting dimensions
Type: Electronic Keypad Lock
Material: Zinc alloy
Finished: Satin chrome or powder coating
Power supply: Standard CR2450
Function length (X): 20.5mm, 30.5mm
Version: Horizontal
Color: Black, Silver, White
![Electronic Latchbolt Keypad Lock MK731 Electronic Latchbolt Keypad Lock MK731](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/77134484e8a47b7897b6761e43404cef/color-285x93.webp)
![Electronic Latchbolt Keypad Lock MK731 Electronic Latchbolt Keypad Lock MK731](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/bab0415e7895c6840f0cb40672ab190a/mk731-H-electronic-latchbolt-keypad-lock-401x455.webp)
![Electronic Latchbolt Keypad Lock MK731 Electronic Latchbolt Keypad Lock MK731](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/6ea2f105d68840d3994d955c5afeaae3/MK731-H-electronic-latchbolts-keypad-lock-393x176.webp)
Features
● Keypad operation: More durable and easier operation.
● All-metal housing: Durable with 10mm lock housing.
● Horizontal version: Suitable for left and right door use.
● Three-level management: Master, Sub-master, User.
● Public and Private mode: The same lock can switch between public mode and private mode freely.
● Master key: Emergency unlocking.
● IP65 rating: High-level resistance to water, humidity and dust.
● Low battery warning: Low battery indicator.
● Anti-microbial: Optional with anti-microbial (Escherichia coil and Staphylococcus aureus) up to 97%.
● Door thickness available: Various door thicknesses
from 0.6mm to 20mm (metal, wood, glass, plastic...).
Mounting dimensions
![Mounting Dimensions Mounting Dimensions](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/b97068b8e143ecf35df808e915f1b479/MK731-H-electronic-latchbolt-keypad-locks-mounting-dimensions-736x393.webp)
