Product name:

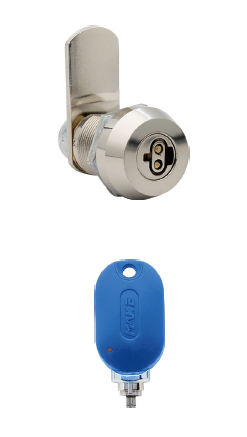

High security passive electronic lock M5-LOCK
Technical data
Type: Wireless smart lock
Material: Zinc alloy
Finished: Bright chrome
Input Voltage: DC3.7V
Static Power: ≤40uA
Dynamic Power: ≤50mA
Temperature: -15℃ - +65℃
Humidity: 5% - 95%
![High-security Passive Electronic Lock M5-LOCK High-security Passive Electronic Lock M5-LOCK](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/4667bb46878bc00d876d04e05b695495/M5-high-security-passive-electronic-locks-247x437.webp)

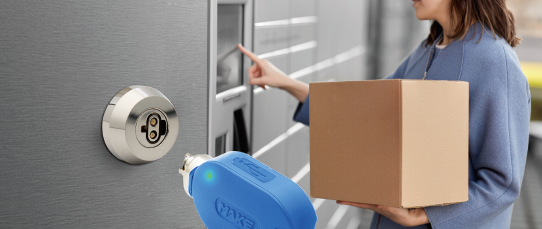

Scope of application:
Safe box, gun cabinet, warehouse storage, vending machine, server cabinet, jewelry counter, railway fence, distribution box, ATM machine.
![High-security Passive Electronic Lock M5-LOCK High-security Passive Electronic Lock M5-LOCK](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/fecbde4ce52c64d19823100d69e5aa0d/M5-high-security-passive-electronic-lock-542x229.webp)
Features
● Controlled Access: Keys are electronically programmed to open only specific locks.
● Accountability: Audit information recorded in both the lock and key shows a record of every event.
● No wiring required: All power is provided by the key.

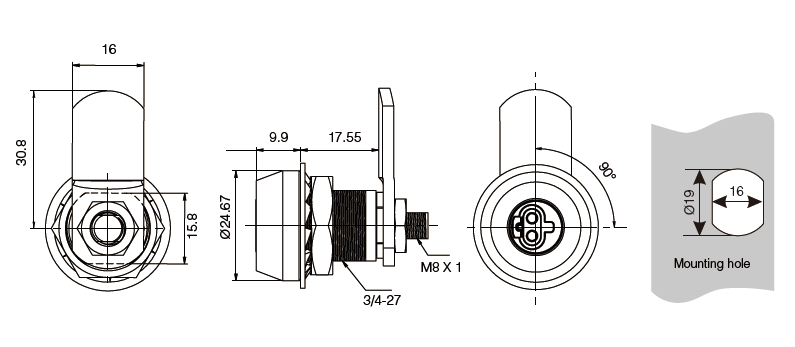

Mounting Dimensions
![High-security Passive Electronic Lock M5-LOCK High-security Passive Electronic Lock M5-LOCK](https://img.jeawincdn.com/resource/upfiles/4/images/products/locker-locks/resize/edede331b59a4c71d3140b0580aaa968/M5-high-security-passive-electronic-lock-mounting-dimension-795x347.webp)
