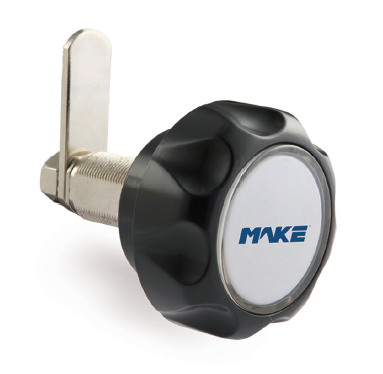

Zinc Alloy & ABS RFID Cam Lock for Locker MK726, Keyless

Name: RFID Cam Lock for Locker MK726



Technical data
Type: RFID cam lock
Material: Zinc alloy, Steel, nylon
Finished: Black color as standard, different colors available
Input Voltage: DC3V
Power supply: CR2477 battery
Static current: ≤40uA
Dynamic current: ≤50mA
Temperatura: -15℃ - +65℃
Humedad: 5% - 95%





Features
● Mifare System: 13.56MHZ frequency.

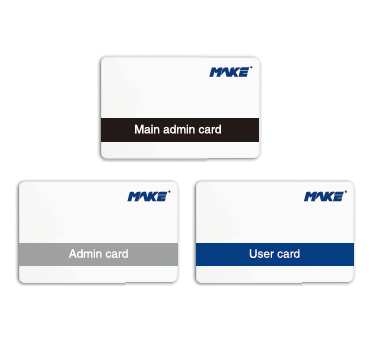

● Three-level management: Main admin, Admin, User.
● Easy installation: Quick and easy to install & operate with a 16*19mm standard mounting hole.
● Easy Programing: No external programming devices needed.
● Lock status indication: LED in 2 colors (green and red).
● Low battery warning: Low battery indicator.
● Wide application: Suitable for wooden/plastic/metal doors thickness from 0.6 to 20mm. Can be used for the right/left handle.

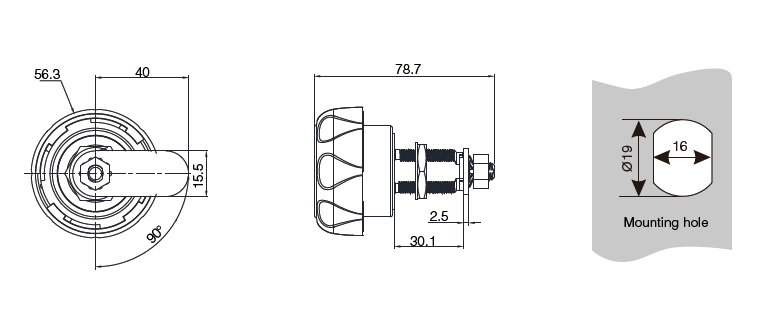

Mounting Dimensions
